RED Vibe Coding Challenge · 2026

Six-Petal Bloom

Grow a Song-style crackle glaze in six taps

An offline generative-art mini-tool for RED (Xiaohongshu): choose a white-glazed porcelain vessel, tap six times to let crystal crackle bloom from its heart, then frame it as a poster worth posting.

Generative DesignCreative CodingUI/UXWebGL
PROJECTConcept / Interaction / Visual Design / Front-end Engineering

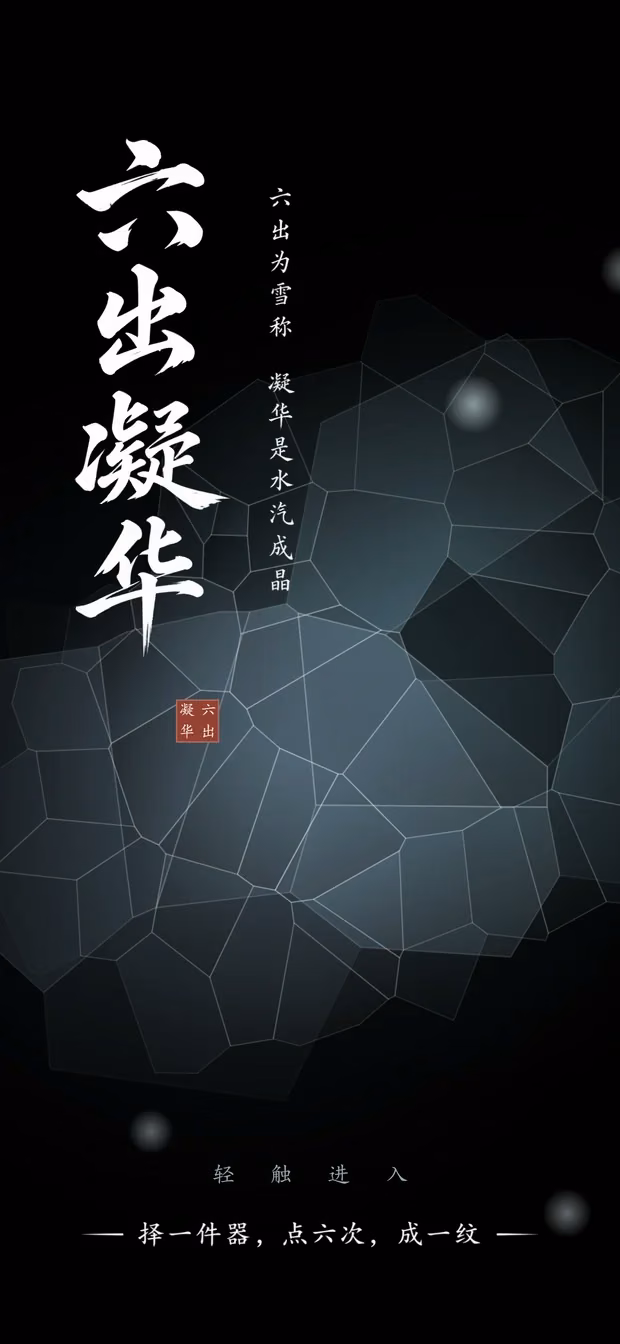

Entry screen: calligraphic title over a slate crackle field
A finished blue-violet bloom poster with vertical inscription
Try it

Play the real build

Choose a vessel, tap six times inside the bowl, then rotate it and frame your poster. Sound on for the porcelain chimes.

The exact offline package submitted to RED (Chinese-language UI). Saving and posting need the RED app, so the build falls back to screenshot mode here.

About the name

Liù chū, “six-pointed”, is the classical name for a snowflake; níng huá is deposition — vapour turning straight into crystal. “Most flowers have five petals; snowflakes alone have six.” The tool turns that line into a gesture: six taps, one crystal bloom.

RoleSolo designer & developer
PlatformRED mini-tool · offline HTML5
DateAug 2026
Experience Flow

Choose a vessel, tap six times, grow one pattern

Chinese-language product · screens shown as shipped.

1

Enter

Voronoi crystals spread from the centre while the title is written stroke by stroke.

2

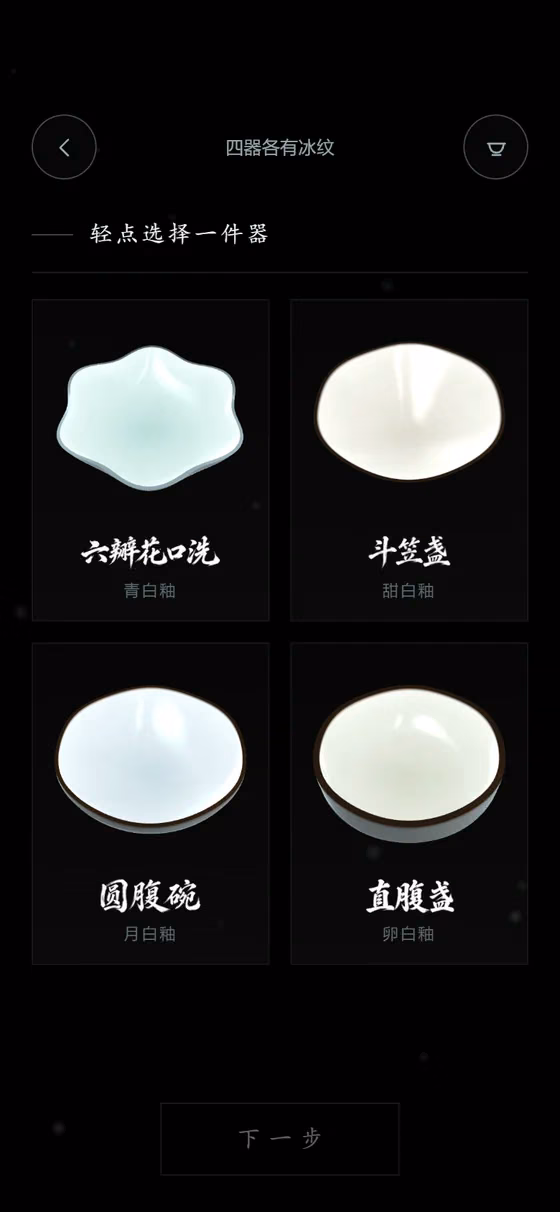

Choose a vessel

Four white-glazed forms, each rendered live in 3D.

3

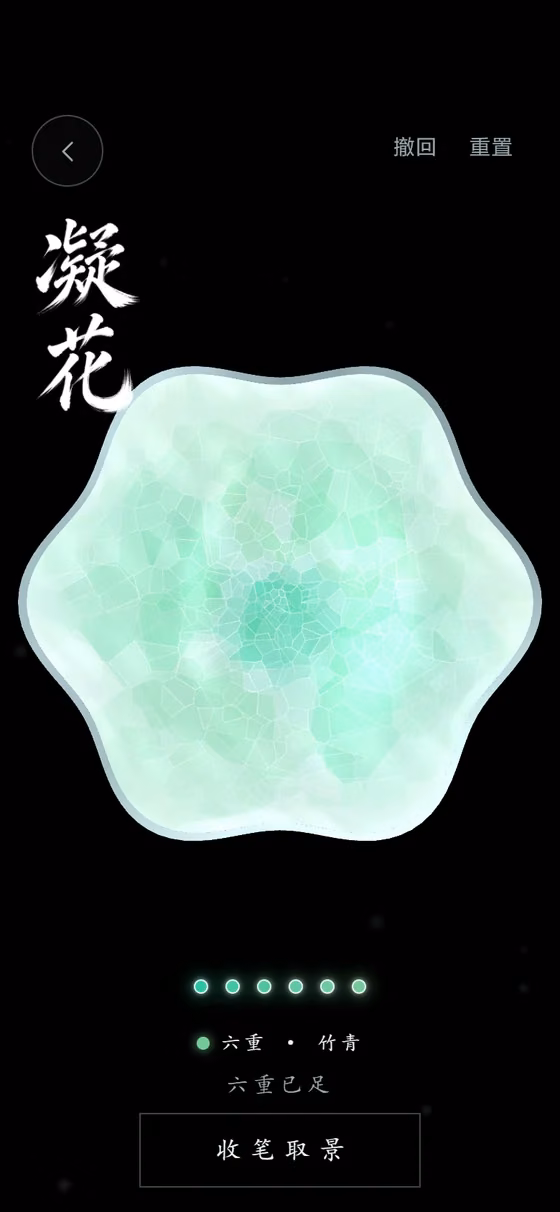

Bloom

Top-down and still. Each tap reveals a wave of crackle shards.

4

Frame

Rotate and pinch only unlock after the sixth tap — find the angle.

5

Compose

A poster with a vertical inscription, generated title and a vermilion seal.

Core Mechanic

Every touch shows. Every piece finishes.

Each tap reveals a share of the crackle field equal to the remaining shards ÷ remaining taps — so the sixth tap always completes the bowl. Colour is deepest at the heart and whitens toward the rim.

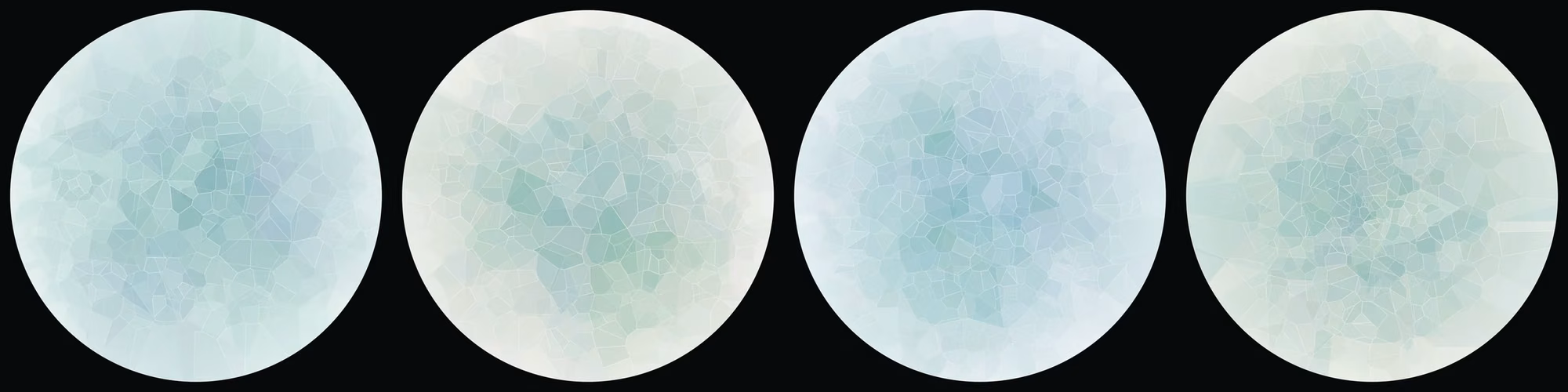

Four generated crackle-glaze patterns seen from above

Four seeded results — two-layer Voronoi ice fields, each tinted by one family of neighbouring hues.

Twelve traditional colour anchors

Vermiliondānsè Persimmonzhūshì Apricotxìnghuáng Pine pollensōnghuā Willowliǔlǜ Bamboozhúqīng Jadeqīngbì Sky bluetiānqīng Indigodiànqīng Ultramarineqúnqīng Wisteriaténgluó Rougeyānzhī

Approximate swatches. Each work stays inside one family of neighbouring hues, so even a random seed stays harmonious.

Iteration

From a mist-grey album leaf to an ink-black field

v1
v1: a single bitmap celadon washer
  • Light mist-grey ground (#E7ECE8) washed out the crystal highlights.
  • One 1.3 MB PNG washer — no rotation, inaccurate texture mapping.
  • 6–10 crystals blurred the simple “tap six times” rule.
v2
v2: procedural washer at three angles with clear-glaze reflections
  • Ink-black field so crystal light reads; one vermilion seal as the only accent (≤ 0.5% of the canvas).
  • Procedural 3D lathe mesh — four vessels, free rotation, accurate glaze mapping.
  • Exactly six crystals: the rule becomes the ritual.

How the crystal model evolved

  • v2.2

    Walker crack propagation — organic, but slow to read and hard to finish in six taps.

  • v2.3

    Single-centre branching tree — clearer, but every bowl looked alike.

  • v2.4

    Reveal-style Voronoi shards — each tap uncovers a wave of ice plates; finishing is guaranteed.

  • v2.5

    Seeded variety — five shard families (drift, current, bloom, plates, rift) plus mood palettes.

  • v2.6

    Clear-glaze reflection — two virtual window lights, dimmed 72% over crystals, so it stays porcelain, not glass.

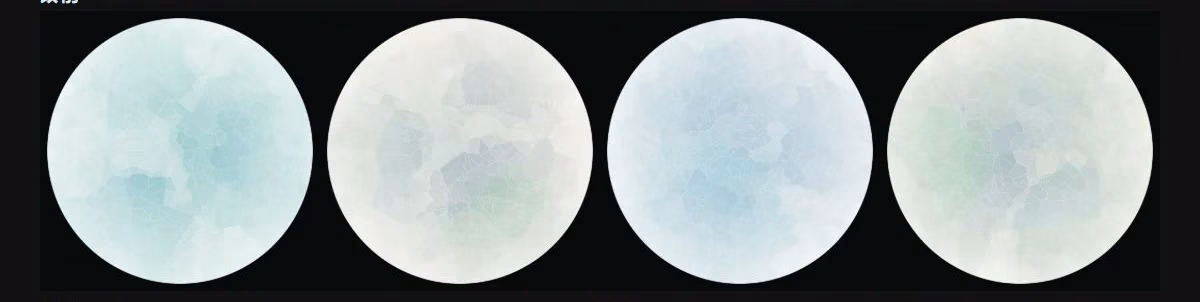

Before: four patterns that look alike
Before v2.5 — similar results

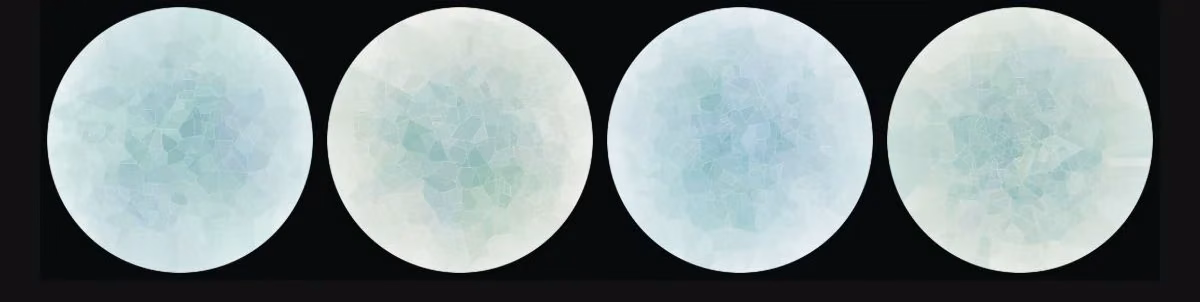

After: four distinct patterns
After v2.5 — seeded shard families
Output

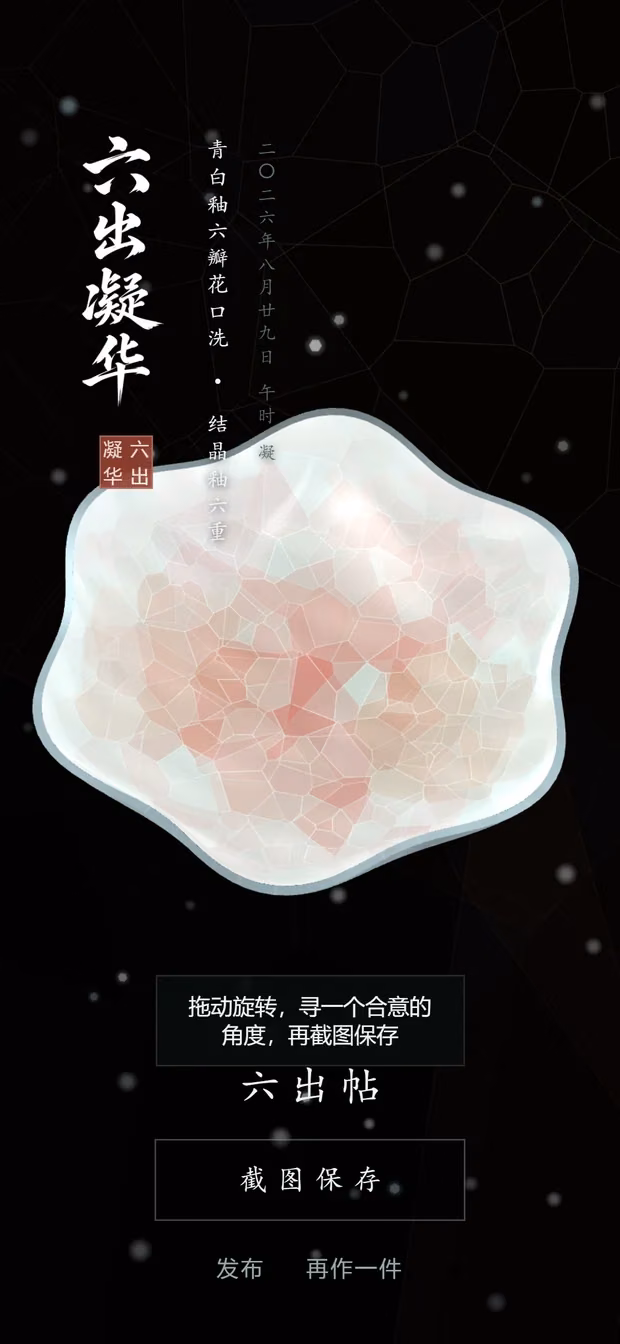

A poster with its own classical title

The vessel is the only hero. Two vertical columns record vessel, glaze, date and the traditional two-hour time period; a four-character seal signs it. Every work gets a generated title — “Clear Ice” and “Six-Point Album”.

Save to album or publish to RED through the native bridge; if it’s unavailable, a clean screenshot mode takes over. A local archive keeps the last eight works.

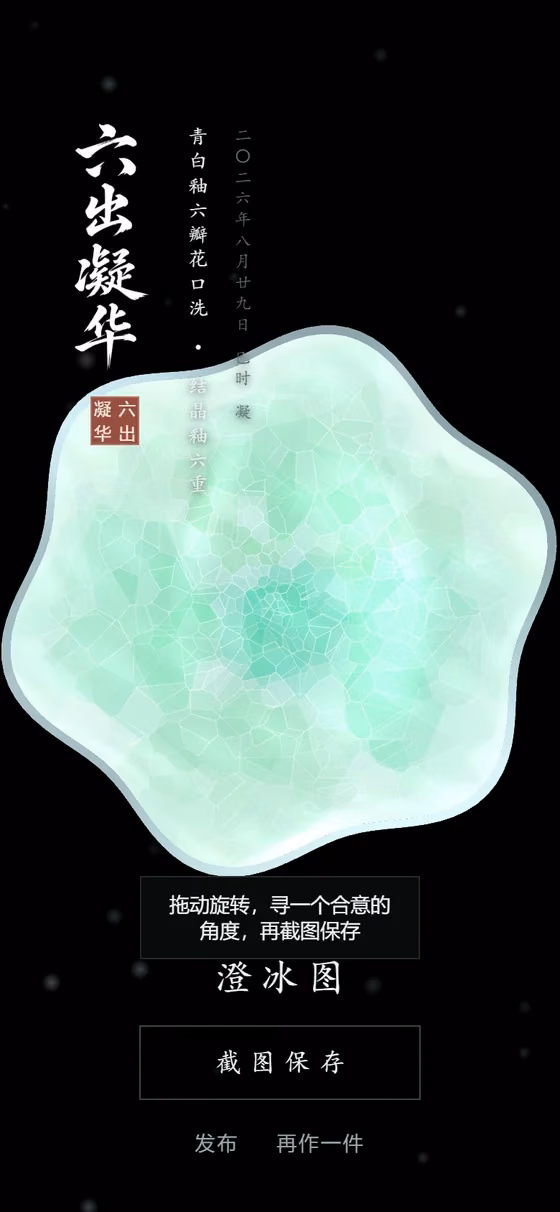

Bamboo-green result with save buttons
Exported blue-violet poster

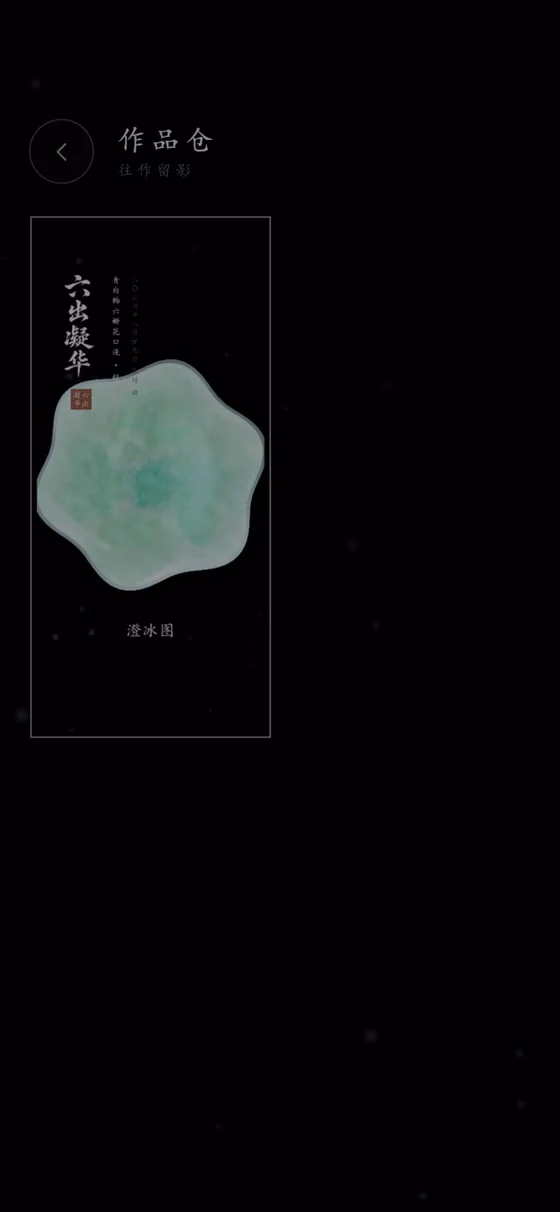

Local archive of works
Engineering

Hand-written WebGL, fully offline

A custom lathe renderer, seeded Voronoi ice fields and a polar glaze texture — classic scripts only, under RED’s 10 MB sandbox.

64/64

Tests passing

18 ms

Max pointer handler

0

Long tasks at 2× CPU throttle

0

Bitmap vessels shipped
